170063-2
Manufacturer:
TE Connectivity
Mfr.Part #:
170063-2
Datasheet:
Description:

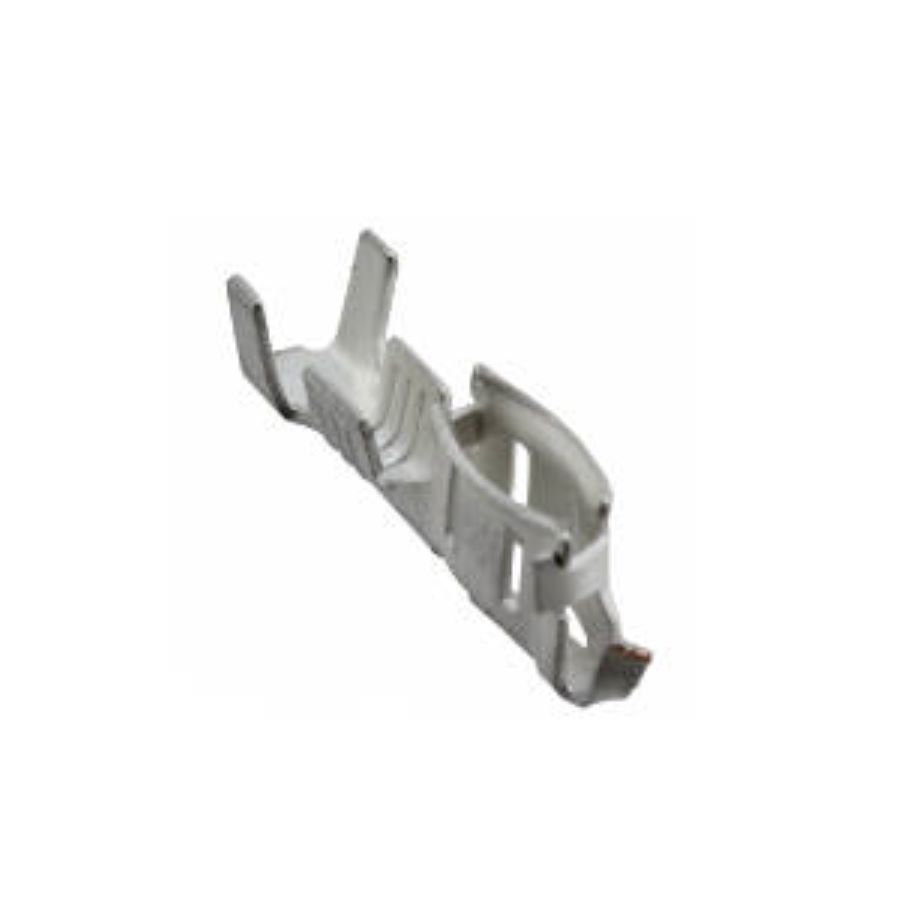

Terminals Free Hanging 16 AWG Female
| Parameter | Value |
|---|---|
| Length | 20.6 mm |
| Termination | Receptacle |
| Packaging | Reel |
| Depth | 5.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Body Material | Bronze |
| Wire/Cable Gauge | 16 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.4036 mm |
| Body Plating | Tin |
| Material Thickness | 368.3 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 4468
Distributors
pcbx
pcbxUnit Price$0.12768
Ext.Price$0.12768
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12768 | $0.12768 |
| 10 | $0.06384 | $0.63840 |
| 50 | $0.05702 | $2.85100 |
| 100 | $0.05093 | $5.09300 |
| 500 | $0.04456 | $22.28000 |
| 1000 | $0.03899 | $38.99000 |
| 3000 | $0.03662 | $109.86000 |
| 5000 | $0.03440 | $172.00000 |
| 10000 | $0.03234 | $323.40000 |
